Support for complex stroke linestyles and the patterns used to make them. More...

Modules
	builders
	ComplexStroke Pattern builders.

Classes
class	luciad::ComplexStrokeLineStyle
	A style that can be used to stroke the outline of a shape with complex patterns. More...

class	luciad::ComplexStrokePattern
	This class represents a complex stroke pattern, for example a dash or an arrow. More...

class	luciad::ComplexStrokePatternFactory
	Factory to create all `patterns` that are used to create `complex strokes`. More...

Enumerations
enum class	luciad::ComplexStrokeOrientation { luciad::ComplexStrokeOrientation::CameraFacing , luciad::ComplexStrokeOrientation::ParallelToEarthSurface }
	The orientation of the area that is used to render the complex stroke on for 3D lines. More...

enum class	luciad::ComplexStrokePatternArrowType { luciad::ComplexStrokePatternArrowType::RegularOutlined = 0 , luciad::ComplexStrokePatternArrowType::RegularFilled , luciad::ComplexStrokePatternArrowType::Plain , luciad::ComplexStrokePatternArrowType::PlainOutlined , luciad::ComplexStrokePatternArrowType::PlainFilled , luciad::ComplexStrokePatternArrowType::Blunt , luciad::ComplexStrokePatternArrowType::LeftHalf , luciad::ComplexStrokePatternArrowType::RightHalf , luciad::ComplexStrokePatternArrowType::DoubleLeftHalf , luciad::ComplexStrokePatternArrowType::DoubleRightHalf }
	The different arrow types supported by the `arrow pattern`. More...

Detailed Description

Support for complex stroke linestyles and the patterns used to make them.

ComplexStrokeLineStyles can be used to stroke the outline of a shape with complex patterns. The building blocks for creating them are ComplexStrokePatterns.

Enumeration Type Documentation

strong

The orientation of the area that is used to render the complex stroke on for 3D lines.

luciad/layers/styles/complexstrokes/ComplexStrokeLineStyle.h

See ComplexStrokeLineStyle for more information.

Enumerator

CameraFacing

The area that is used to render the complex stroke faces the camera.

The complex stroke will always be visible, but it may be deformed in some camera positions.

ParallelToEarthSurface

The area that is used to render the complex stroke is parallel to the earth surface.

Deformations are limited, but when tilting the camera the line can become very thin and hard to see.

strong

The different arrow types supported by the arrow pattern.

luciad/layers/styles/complexstrokes/ComplexStrokePatternArrowType.h

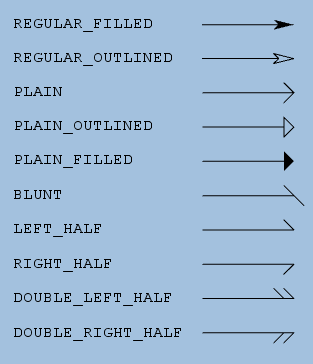

The following image shows the supported arrows:

all arrow types
